- Lead-acid replacement
- Extended cycle life
- Compact design
- Plug and Play
- Easy installation
- High charge and discharge rate
- NMEA2000 compatible
Specifications:
- Cycle life: >3500 cycles (80% DoD) @ 25Deg Celcius to EoL of 70% of initial capacity.
- Continuous discharge current: 280A
- Max. discharge current: 230A
- End of discharge voltage: 21.6V
- Charge voltage: 28.4V - 29.2V (28.2V recommended)
- Max. cont. charge current: 280A
- Operating Discharge temperature: -20°C to +55ºC
- Operating Charge temperature: 0°C to +45ºC
- Storage temperature: -20°C to +45ºC
- Humidity (non-condensing): max. 95%
- Protection class: IP40
- Cooling: Air, Convection
- BMS passive balancing with integrated slave BMS
- This M12 Version is suitable for systems with up to 6 Modules in series.

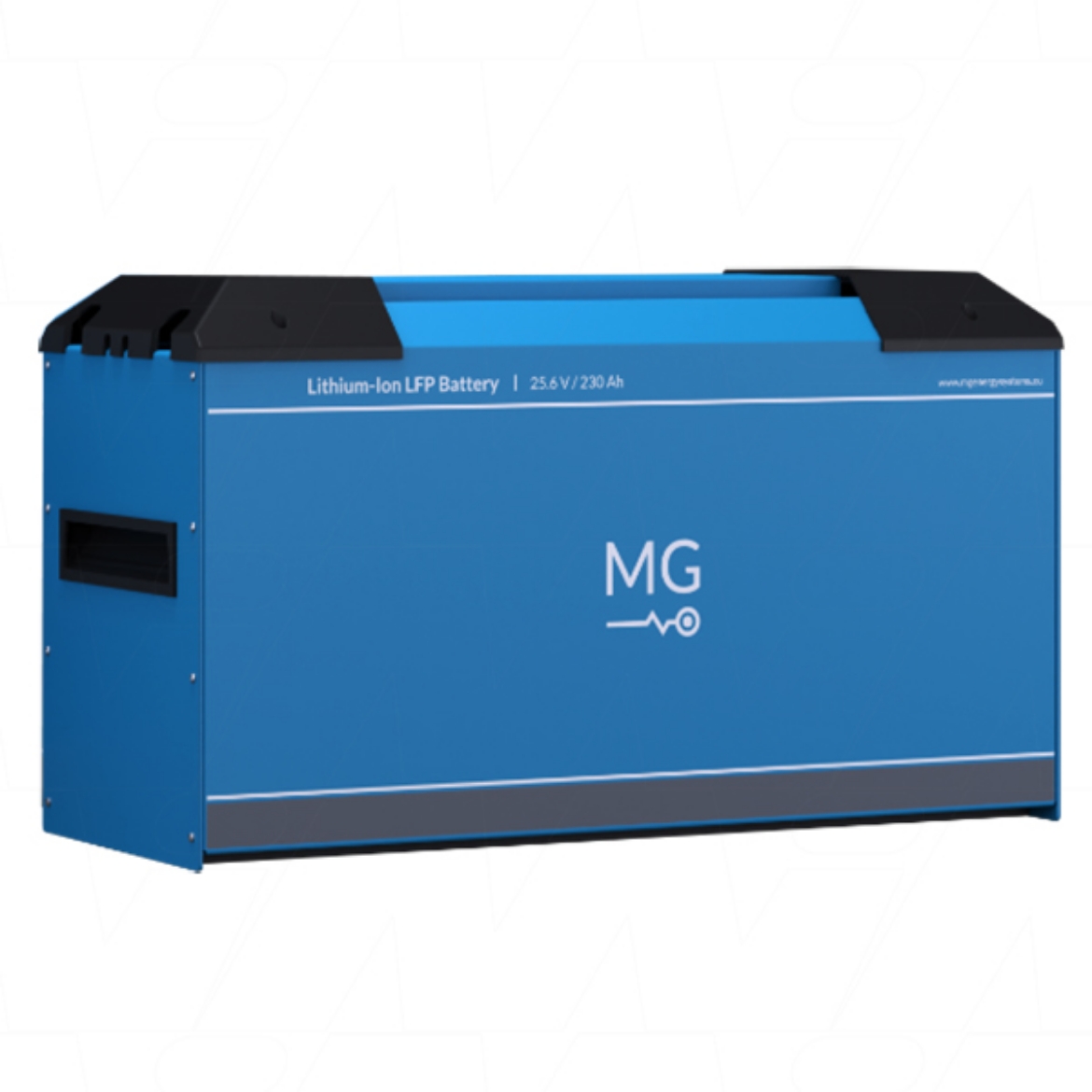

This MG Energy 25.6V LFP Battery can be connected in Unlimited Parallel configurations. Up to six (6) batteries in series connection are allowed for this model.
External BMS:
Systems using up to Four (4) batteries in series require the use of a MG Master LV Battery Management Controller.
Systems using five (5) batteries in series require the use of a MG Master HV Battery Management Controller
Fuses:
300A fuse inside battery. Fuses can be replaced with dummy fuses for high power applications. The battery will require external fuses in these cases.
Product Supplied With:
M12 CANBus comms connection.
