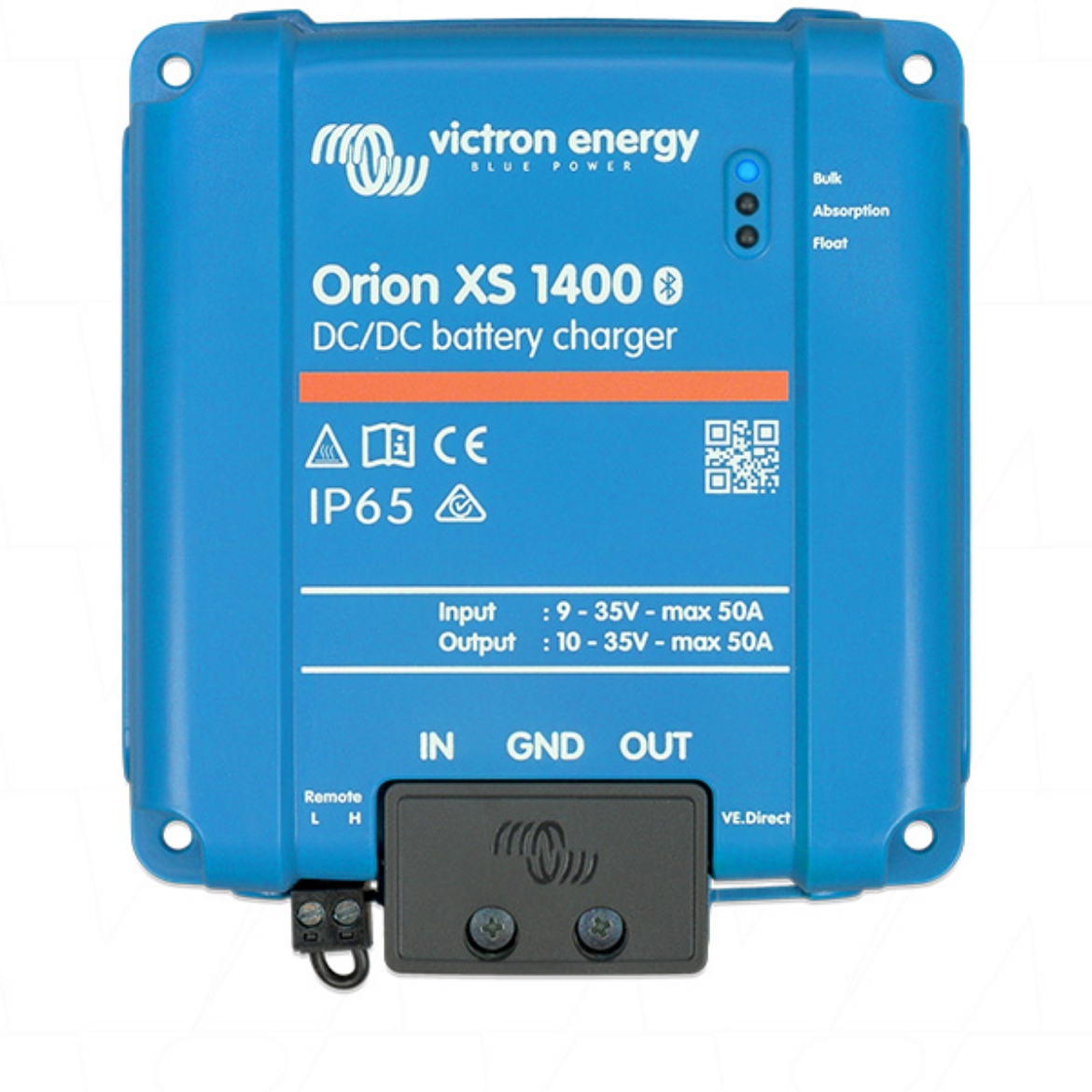

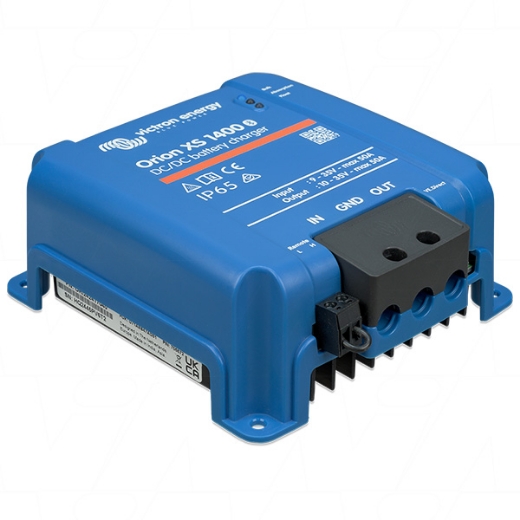

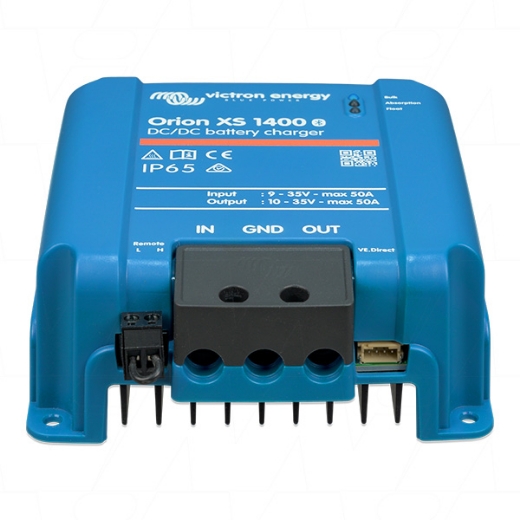

Orion XS 1400 DC-DC Battery Charger Engineered from the ground up, the Orion XS redefines adaptive DC-DC charging. For use in dual battery systems charged with an (intelligent) alternator. This device not only ensures top-tier performance but also guarantees the safety of your system. The Orion XS serves as a DC-DC battery charger or as a power supply, offering a wide input and output voltage range. This is especially significant in the case of vehicles with a Euro 5 or Euro 6 smart alternator, which often supplies too low charging voltage even when the engine is running or when extended cable lengths, as is often the case in boats and RVs, lead to voltage drops. In such scenarios, precise and controlled charging is imperative to fully charge the service battery while protecting the starter/input battery from discharge. Adjustable charging current The charge current is adjustable with a minimum step size of 0.1 A. via VictronConnect. Multi-voltage use The Victron Orion XS 1400 DC-DC charger has a maximum output current of 50A, the wide input and output voltage range enables it to be used with any combination of 12V & 24V systems on the input and output, making it suitable for a wide range of vehicles and auxiliary battery systems. The 50A charge current provides a maximum power output of 1400W @24V, and 700W @12V, It can be configured for various voltage combinations, including 12V to 12V, 12V to 24V, 24V to 12V, and 24V to 24V. When configured for 12V to 12V, it can deliver up to 50A of charging current. In 12V to 24V mode, it can output up to 25A, which is derived from the 50A input from the 12V source. The unit can also output 50A for both 24V to 12V and 24V to 24V configurations. Smart alternator compatibility An integrated mechanism detects whether the engine is running (engine shutdown detection), which only activates the charger when the alternator supplies power. This ensures that the charger only draws power when the alternator is supplying power, i.e. when the engine is running. Adaptive 4-stage charge algorithm For lead acid batteries it is important that during shallow discharges the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged. The Orion XS includes fully programmable charging algorithms and eight pre-programmed battery settings. Low temperature shutdown and input undervoltage protection To prevent damage of lithium batteries the charger will turn off automatically at low temperatures. It will also shut down when the input voltage drops below a configurable lockout value and restart when the input voltage rises above the restart value, this to protect the input source ie. starter battery from deep discharge. Remote on/off The Orion XS can be switched on and off remotely via the remote on/off connector or the VictronConnect App. Typical applications include wiring a switch or Battery Management System (BMS). Comprehensive electronic protection The protections includes overload, short circuit and excessive temperatures. The charger is protected against overtemperature by reducing the output power when the maximum product temperature is reached. Can be paralleled to increase output current An unlimited number of units can be connected in parallel. Bluetooth Smart enabled Built-in Bluetooth Smart: The wireless solution to change settings, monitor activities and update the Orion XS software using Apple and Android smartphones, tablets or other devices. Various parameters can be adjusted with the VictronConnect App. Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the Device list page without the need to connect to the product. VE.Smart Networking: Use VE.Smart Networking to receive Vsense, Tsense and Isense data over the wireless network for your Orion XS DC-DC battery charger, for example, from a BMV, a SmartShunt, or a Smart Battery Sense. The charger uses the available information from the battery to optimise the charging parameters. This improves charging efficiency and extends battery life. VE.Direct port and DVCC For a wired connection to a GX device such as the Cerbo GX or Ekrano GX, PC or other devices. Enables advanced monitoring, control and diagnostics from anywhere (requires a GX device connected to the internet and VRM Portal) or locally via the Remote Console, as well as DVCC (Vsense, Tsense, Isense), System wide charge current limit and BMS control. IP65 protection The Orion XS complies with ingress protection rating IP65. This means the product is dust-tight and protected against heavy rain.
