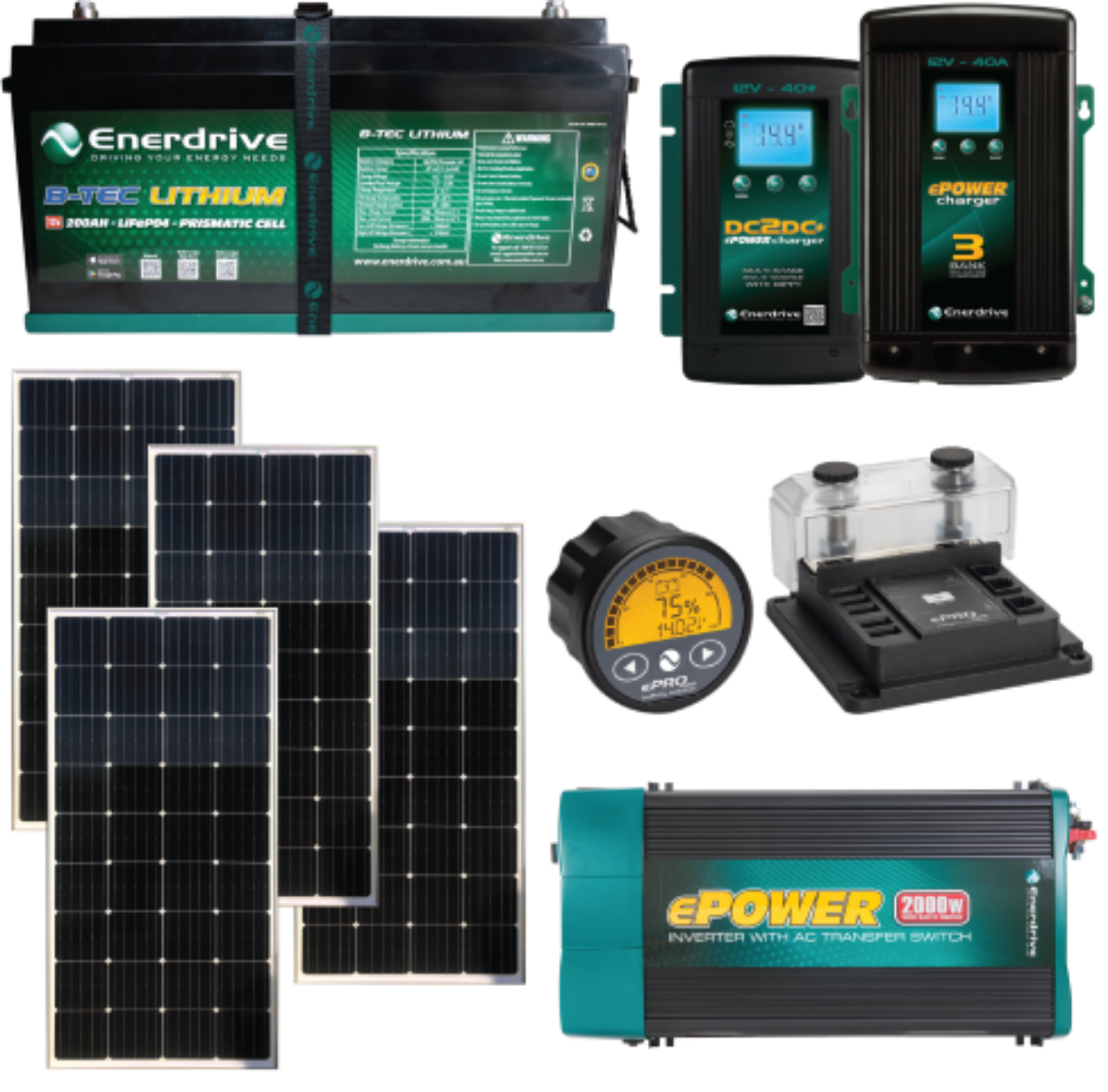

ENERDRIVE 12V 200AH B-TEC LIFEPO4 BATTERY INC 760W SOLAR, 12V 40A DC-DC CHARGER, 12V 40A AC CHARGER, EPRO+ MONITOR & 2000W INVERTER BUNDLE

$6,210.91 Ex. GST

| Be the first to review this product

UNIT

Stores: Call Store

Manufacturer: Enerdrive

SKU: K-200-TIAV-2000X

increase decrease

Overview
Contact Us

LiFePO4 prismatic cell
BMS restart button
RS485 communication port
Raised terminals for 360 degree cable connection
Re-designed battery case
Metal battery tray and hold down strap included
Smart Phone Monitoring System - By downloading the Android or Apple app, you can monitor Battery Capacity, Battery Voltage, Battery Current (Amps), Battery State of Charge (SOC), Battery State of Health (SOH), Battery Status, Individual Cell Voltage, Battery Temperature, Battery Cycles, Battery Alarms & Battery Event Information
Capable to be paralleled to a second G2 battery. For maximum performance and lifespan of your G2 battery, no more than 4 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single battery's BMS
Able to accept a maximum inverter capacity of 2600W only. Exceeding the maximum inverter capacity can damage the BMS Management within the battery.
IP63 Rating
In vehicle engine bays or in high heat environments, refer to Section 10 - Battery Specifications of the manual
In wet areas such as caravan chassis mounts, open ute trays or boat deck areas
Inside compartments dedicated to carrying gas
Fully automatic 4 stage battery charger
Charges 3 battery banks of different chemistry if required
Isolated charging design
User adjustable current output
Programmable: Battery bank 1 can be programmed with a different charge algorithm over banks 2 and 3
Smart Charging: The ePOWER 40A battery charger will regulate its output based on the loads connected to your battery banks
Wide AC Input Range: Operates on both 110V / 60Hz and 240V / 50Hz
LED Display: Easy to use “set and select” menu along with scrolling charger status
Silent Mode: Disables the cooling fan for total silent operation at night or whenever required. Activation reduces charge output by half and locks out fan for 12 hours
Battery temperature sensor included with 3 meter cable
Charges AGM, Gel, Wet cell, Calcium & Lithium
User Selectable 5/10/15/20/25/30/35/40/45/50A (default 40A)
Two totally independent DC Inputs for both engine and solar regulation charging one house battery bank output
DC M6 screw terminals that will allow for large battery cable connection between all sources
A dedicated Maximum Power Point (MPPT) solar regulator
The same battery algorithms as included in our AC mains ePOWER battery charger. GEL, AGM, Flooded, Lithium and the ability to create a full custom profile
Vehicle input allows for either 12 or 24v and a maximum solar input of 45V/800W
40A+ output up to 40+℃ with thermo controlled fan cooling
Fully programmable LCD display to show which source is charging the battery along with charger status, voltage and amperage
Temperature sensor included with charger for more accurate battery charging
Suits 12-48V lead or lithium batteries with DC currents up to 600A (500A continuous)
3 Voltage Inputs: Main, start and aux
Full monitoring on main bank with SOC, Current and Watts
4 programmable alarm settings
Perfect integration with Enerdrive DC Modular products
Very simple ‘Plug and Play' installation
Bluetooth Capability - Bluetooth dongle sold separately (EN5092230)
Optional ePRO PLUS Alarm Output Expander sold separately (EN5093120)
High Conversion Efficiency - Module efficiency up to 17.86% achieved through advanced cell technology and manufacturing capabilities
Positive Tolerance - Positive tolerance of up to 0~+5W delivers higher output reliability
High PID Resistant - Advanced cell technology and qualified materials lead to high PID resistant
Current Sorting Process - System output maximised by reducing mismatch losses up to 2% with modules sorted and packaged by amperage
Extended Wind and Snow - Load tests, Module certified to withstand extreme wind (2400 Pascal) and snow loads (5400 Pascal)
Withstanding Harsh Environment - Reliable quality leads to a better sustainability even in harsh environments in the outdoors
MC4 compatible solar cable connectors included
Seamless 16A AC Internal Transfer Switch
AC RCD/Safety Switch with test button
Removable LED Remote Control Display Panel
Regulated Pure Sine Wave Output
Silent Operation
Compact Size for Easy Installation
USB Port for charging USB devices
