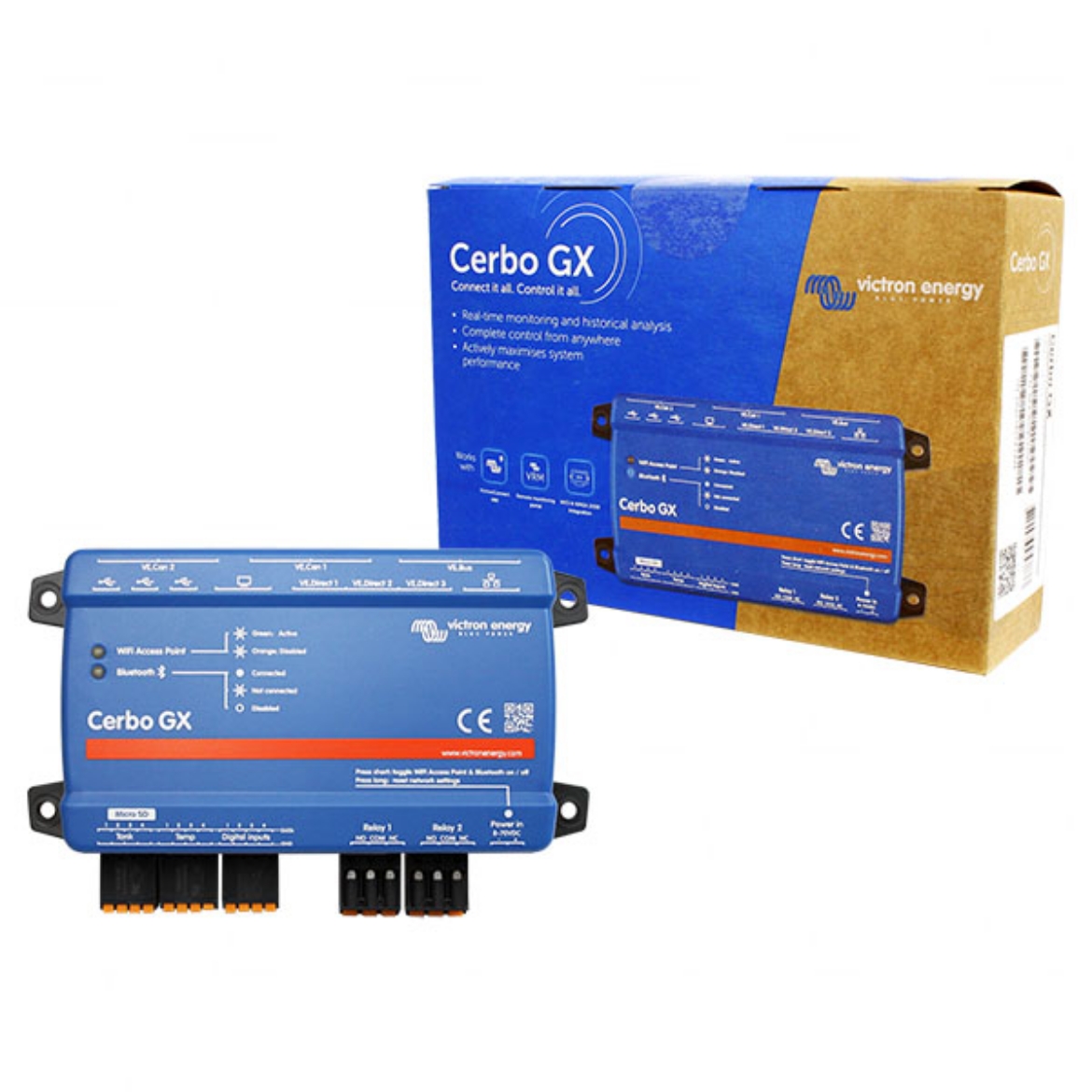

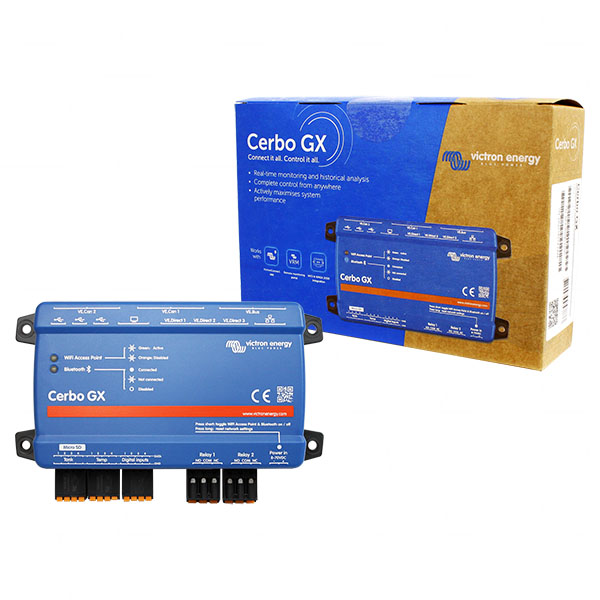

This updated MK2 version of the extremely popular Cerbo GX communication-centre allows you to always have perfect control over your system from wherever you are and maximises its performance, now with:

• Two fully functional CAN bus ports, called VE.Can 1 and VE.Can 2. Instead of one VE.Can and one BMS-Can port.
• VE.Can 1 is isolated. On previous models, there was no isolated canbus port.

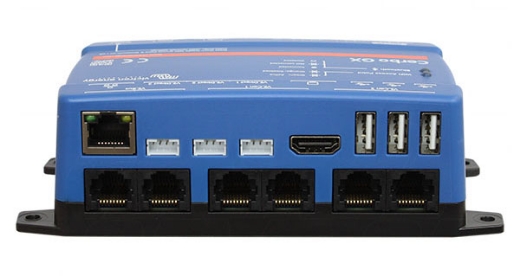

• RJ-45 sockets have been rotated 180 degrees, so its easier to take the cables out.
• All three USB ports are fully functional. Instead of two functional and one for power (to a GX Touch) only.
• Digital inputs can do pulse counting.

Simply connect through our Victron Remote Management (VRM) portal, or access directly, using the separate GX Touch 50 or 70 (MFD), or the VictronConnect app thanks to its added Bluetooth capability. This latest addition to the GX-range combines all the best of connectivity, redefining smart power solutions in every way.

Features:

•  Perfect monitoring & control:

• Monitor the battery's power consumption, state of charge, power harvest from PV, generator, and mains
• Check tank levels and temperature measurements with four ports each
• Control the shore power input current limit, (auto)start/stop generator(s), or change any setting to optimise the system
• Follow up on alerts, perform diagnostic checks and resolve challenges immediately

•  Maximise your system performance:

• The Dual Core Processor and the addition of an extra CAN-bus port allows you to support bigger systems; closely follow managed (lithium) batteries while the second port can support up to 25 simultaneously connected VE.Can solar chargers

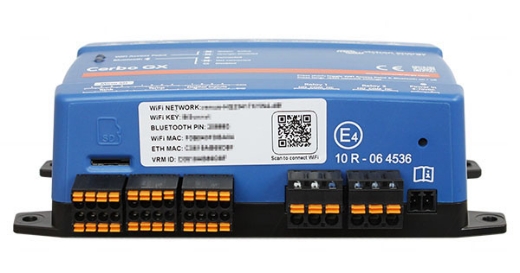

• 3 VE.Direct ports, 3 USB ports, 4 digital inputs and 2 relays

•  Simple mounting and configuration:

• Easily mountable on a DIN-Rail (with DIN35 adapter small – not included) and the separate touch screen can now be bolted on top of dashboards with one cable to eliminate the need to create perfect cut-outs and have messy cords

•  Outsmart any power challenge:

• For solutions including generators, such as Marine, or Backup & Off-grid; it will auto-start/stop your generator, or delays ignition until the end of ‘quiet' periods
• For Energy Storage Systems it keeps backup batteries at 100%, kicks-in during power-outages and diverts excess (solar) power to self-consumption, saving you money
• For RV and Emergency vehicles it keeps vital systems function flawlessly
